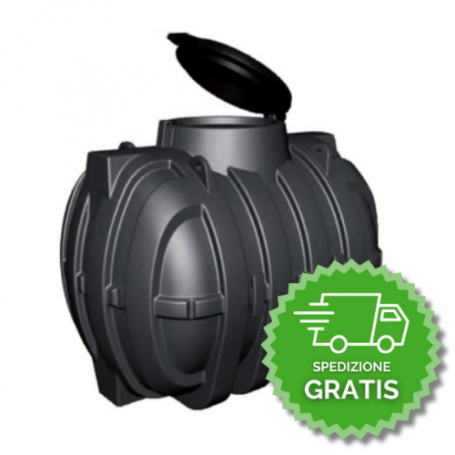

5700 liters polyethylene tank | underground

The Rototec 5700-liter underground corrugated tank is a one-piece tank made of high-density linear polyethylene (LLDPE), obtained by rotational molding. It is designed to be buried underground and intended for storage of potable water, storm water and compatible food liquids. Due to its corrugated structure and seamless construction, it offers high resistance to soil stress, long service life and complete absence of corrosion.

Key Features.

• One-piece corrugated structure: increases mechanical strength and stability in burying.
• Non-toxic material and certified for contact with food and drinking water.
• Ø 63 cm PEflap cap (model TAP800) with secure closure and easy inspection.
• Optional extension PP77 to adjust the laying depth.
• Eight lifting golfer for safe and balanced handling.
• Resistant to UV rays and chemicals compatible with PE.
• Operating temperature range: -20 °C to +80 °C.

Main technical specifications.

Fields of use.

• Storage of potable water for civil, agricultural and industrial use.
• Collection of rainwater for technical reuse or irrigation.
• Containment of food liquids compatible with PE (see Rototec compatibility table).

Installation

Installation must follow the official Rototec "Methods of Interruption." The main directions include:

1. Excavation with flat bottom and 15-20 cm bed of washed gravel (20/30 mm).
2. Laying of empty tank, progressive filling with water and simultaneous backfilling with washed gravel.
3. Backfill by layers of 15-20 cm to 3/4 of the volume, then cover with topsoil.
4. If pump or pumping facilities are present, provide adequately sized open vent.
5. Use extension PP77 if necessary to adjust the burying height.

Warnings

• Product intended forinterruption only - do not use outdoors.
• Do not install near heat sources or in undrained clay/silt soils.
• Use flexible piping for plumbing connections.
• Avoid light seepage to prevent algae growth.
• For stormwater, install a leaf filter sump upstream of the tank.

Maintenance

The tank is supplied unwashed. Before use, wash the inside with water and neutral detergent (or HACCP), rinse thoroughly and repeat cleaning periodically to maintain hygiene and quality of contents.

Regulatory Compliance.

• Reg. (EC) 1935/2004 - Materials in contact with foodstuffs
• Reg. (EU) 10/2011 and 2020/1245 - Plastic materials for food use
• D.M. 21/03/1973 - Hygienic regulation of packaging and containers
• Reg. (EC) 2023/2006 - Good manufacturing practices (GMP)
• Presidential Decree 777/1982 - National regulation of food contact materials

Warranty

Rototec warranty: 2 years on manufacturing defects and 25 years against through corrosion, valid in accordance with the manufacturer's interruption and maintenance instructions.

Standard equipment

• Corrugated underground tank 5700 L (CI5700)
• Ø 63 cm flap cap (TAP800)
• Optional extension PP77
• Lifting golfer (8 pcs)
• Rototec "Interruption Mode" Technical Manual and Instructions

All data and information come exclusively from the official document "Rototec - Corrugated Interro Cistern".
