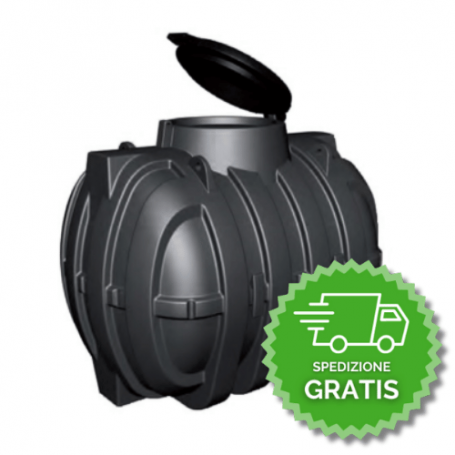

8700 liters polyethylene tank | underground

The Rototec 8700-liter corrugated underground tank is a one-piece tank made of high-density linear polyethylene (LLDPE), produced by rotational molding and equipped with a corrugated structure that ensures its high resistance to soil thrusts. It is designed forunderground installation and storage of drinking water, rainwater and other compatible food liquids, in full compliance with current European regulations.

Main features.

• One-piece corrugated structure: ensures strength, stability and long service life.
• Non-toxic material: linear high-density polyethylene, complying with EU food standards.
• Ø 63 cm flap cap (TAP800) for inspection and maintenance.
• Optional extension PP77 for adjustment of the depth of interruption.
• Eight integratedlifting golfer for safe handling.
• Resistant to UV light and PE-compatible chemicals.
• Operating temperature range: -20 °C to +80 °C.

Main technical specifications.

Fields of use.

• Underground storage of potable water for civil or industrial use.
• Collection of rainwater for technical reuse or irrigation.
• Containment of food liquids compatible with PE.

Installation

The cistern must be installed by following the "Rototec Interrogation Methods."

1. Prepare the excavation with a flat bottom and 15-20 cm bed of washed gravel (20/30 mm).
2. Lay the empty tank and gradually fill it with water, simultaneously backfilling with washed gravel.
3. Cover with topsoil (excluding clay or silty soil) for at least 40 cm above the cap.
4. Provide open venting if connected to pumps or lift systems.
5. Use extension PP77 to increase access height if necessary.

Warnings

• Product intended forunderground use only.
• Do not install near heat sources or in undrained soil.
• Use flexible piping for plumbing connections.
• Avoid light ingress to prevent algae growth.
• Install a leaf filter sump upstream if intended for stormwater.

Maintenance

The tank is supplied unwashed. Before use, wash with water and mild detergent or HACCP, rinse and repeat cleaning periodically.

Regulatory compliance.

• Reg. (EC) 1935/2004 - Materials in contact with food.
• Reg. (EU) 10/2011 and 2020/1245 - Plastic food materials.
• Ministerial Decree 21/03/1973 - Hygienic regulation of packaging and containers.
• Reg. (EC) 2023/2006 - Good manufacturing practices (GMP).
• Presidential Decree 777/1982 - Materials intended for food contact.

Warranty

Rototec warranty: 2 years on manufacturing defects and 25 years against through corrosion, valid only by complying with the interruption methods and maintenance instructions.

Standard equipment

• 8700 L underground corrugated tank (CI8700)
• Ø 63 cm flap cap (TAP800)
• Optional extension PP77
• Lifting golfer (8 pcs)
• Technical manual and instructions "Rototec Interrupting Mode"

Technical data taken exclusively from the official document "Rototec - Corrugated Interro Cistern".
