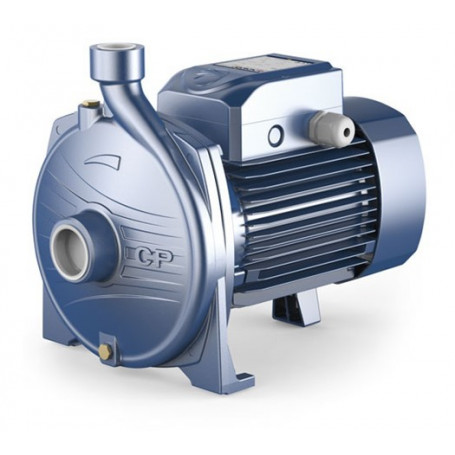

PEDROLLO CP160B V.400 ELECTRIC PUMP - SINGLE IMPELLER CENTRIFUGE
Recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive to the pump's constituent materials.
Performance range:
- Flow rate up to 220 l/min (13.2 m³/h)
- Head up to 36 m
Accettiamo i seguenti metodi di pagamento
Pedrollo Single-impeller Centrifugal Electric Pump CPm 160B 2Hp for clean water and nonaggressive liquids. Because of their reliability and ease of use, they find wide use in the civil, agricultural and industrial sectors, for water supply, air conditioning or cooling systems, irrigation, etc.
TECHNICAL DATA:
- Outlet connection: 1″
- Suction connection: 1″1/2
- Pump body: cast iron equipped with ISO 228/1 threaded ports.
- Lid: Cast iron
- Impellers: Stainless steel
- Motor shaft: stainless steel AISI 431
- Insulation: class F.
- Protection: IP X4.
- Warranty: 2 years
- Power: 1.5 kW
- Operating limits:
- Liquid temperature from -10 °C up to +90 °C
- Ambient temperature from -10 °C up to +40 °C
- Manometric suction height up to 7 m
- Max pressure in the pump body 10 bar
- Continuous duty S1
- BRAND
- PEDROLLO
- POWER (Kw)
- 1.5
- ALIMENTATION (V.)
- 400
