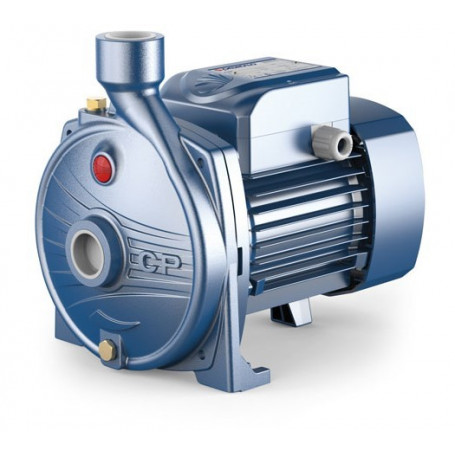

ELECTRIC PUMP PEDROLLO CP132A V230/400/50Hz
zoom_out_map
chevron_left chevron_right

Recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive to the pump's constituent materials.

Performance range:

  • Flow rate up to160 l/min (9.6 m/h)
  • Head up to56 m
Shipping expected within 7 working days


Electric pump pedrollo cp132a v230/400/50hz

Recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive to the pump's constituent materials.

Performance range:

  • Flow rate up to160 l/min (9.6 m/h)
  • Head up to56 m
€158.84 (tax incl.) Iva inclusa
€264.74 -40%
new_releases Out of Stock - Available in 10 Days
migliori ecommerce italia forniture industriali
Migliori E-commerce d'Italia per forniture industriali - la Repubblica
migliori ecommerce italia forniture industriali
24 mesi di garanzia
Icona supporto telefonico
Hai bisogno di ulteriori informazioni? Contattaci

Description
They are recommended for pumping clean water without abrasive particles and liquids that are chemically nonaggressive to the pump's constituent materials. Due to their reliability and simplicity of use, they find wide use in the domestic and civil sectors, especially for water distribution in conjunction with small and medium-sized self-supply tanks, for decanting and for irrigation of vegetable gardens and orchards. Installation to be carried out indoors or otherwise protected from the weather.
Features

Liquid type:clean water

Uses:domestic, civil

Uses:irrigation, cooling systems, air conditioning systems, water supply, tank transfer, pressurization systems

Type:surface

Family:centrifuges

Performance range:

  • Flow rate up to160 l/min (9.6 m/h)
  • Head up to56 m

Usage limits:

  • Liquid temperature from -10 C up to +90 C
  • Ambient temperature up to +40 C
Manometric suction height up to 7 m
Max pressure in the pump body:
6 bar for CP 100-130-132-150-158
10 bar for CP 170-190-200
Continuous duty S1
44CIT04A
BRAND
PEDROLLO
ALIMENTATION (V.)
400
POWER (Kw)
0.6
CP 0.25-2.2 kW_IT_50Hz.pdf
