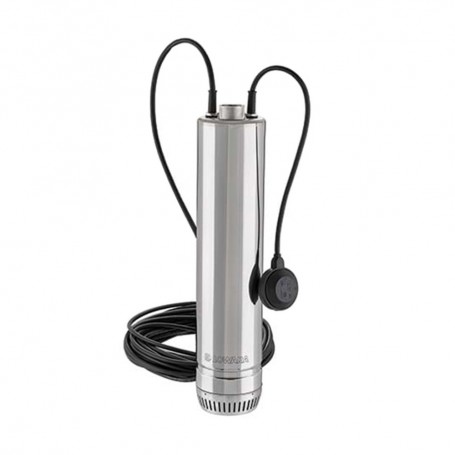

ELECTRIC PUMP LOWARA SCUBA 1SC9/09C G L20 DE + FLOAT SWITCH
Xylem Lowara's new SCUBA 1SC9/09C G L20 DE compact, single-stage submersible pump from Xylem Lowara offers a new level of reliability and flexibility for a wide variety of applications such as supplying water from ponds, lakes, canals or cisterns, as well as for irrigating gardens, vegetable gardens and fields, rainwater harvesting and management, or water supply in residential, commercial and agricultural buildings.
SCUBA multistage pumps are quiet and compact, have high performance and are corrosion resistant.
Click on the link to return to the category of Lowara SCUBA electric pumps
Accettiamo i seguenti metodi di pagamento
IDENTIFICATION ABBREVIATION 1SC9/09C G L20 DE
1 nominal flow rate [m3/h]
SC series name
9 number of impellers
09 rated power (kW x 10)
C with integrated condenser
G with float switch
L20 power cable
DE German plug
USES
● Water supply from first collection tanks or reservoirs, 6" wells or Roman wells, reservoirs and streams.
● Pressurization with pump directly inserted into the tank or well.
● Rainwater collection tanks.
● Car washing systems.
● Boat edge pressurization.
● Water filtration and reuse systems.
ADVANTAGES
Double mechanical seal system with interposed oil chamber.
Pressurization with pump directly inserted into the tank or well, avoiding suction and noise problems.
Maximum amount of sand tolerated in the water 25 g/m³.
Silent operation for greater comfort.
TECHNICAL DATA.
- Flow rate: up to 10.8 m3/h at 2850 rpm
- Head: up to 100 m at 2850 rpm
- Motor power: 0.55 to 2.2 kW
- Maximum operating pressure: 10 bar
- Single-phase version: 220-240 V, 50 Hz 2 poles (2850 rpm)
- Immersion depth: max 17 m
- Temperature of pumped liquid: 0 to 40°C
- Solids passage: 2 mm (1SC: 1 mm)
MATERIALS
Jacket: Stainless steel
Impeller: Technopolymer
NBR: Inner side mechanical seal
Inner side mechanical seal: Carbographite
External side mechanical seal: Silicon carbide
- BRAND
- LOWARA
- POWER (Kw)
- 0.9
- ALIMENTATION (V.)
- 230
