- Model: FAMILY (VORTEX stainless steel submersible electric pump for dirty water)
- Use: Draining and lifting sewage with solids up to Ø 30 mm, ideal for domestic use in automatic fixed installations.
- Performance: Flow rate up to 250 l/min (15 m³/h) - Head up to 10 m.
- Limits of use: Maximum immersion 5 m (with suitable cable) - Liquid temperature up to +40 °C - Minimum immersion for continuous service: 160 mm.
- Power supply / Electrical data: Single-phase 230 V - 50 Hz - P2 0.50 kW (0.70 HP) - Rated current 3.0 A - Insulation Class F - Protection IPX8.
- Materials: Pump body, base, motor jacket and VORTEX impeller in AISI 304 stainless steel - Motor shaft in AISI 431.
- Seal: STA-12R double mechanical seal (Ceramic/Graphite/NBR) with interposed oil chamber.
- Equipment: 5 m H07 RN-F cable with Schuko plug - Built-in float switch - Ø 50 mm hose holder.
- Connections/Solids passage: 1½" port - Solid body passage up to Ø 30 mm.
- Approximate dimensions: a 70 mm - b 93 mm - c 140 mm - H 333 mm - h1 68 mm - Weight 7.0 kg.
- Notes: Italian patent no. IT0001428923.
Warranty: 2 years
FREE SHIPPING
CLICK TO RETURN TO ELECTRIC PUMPS
Available Now

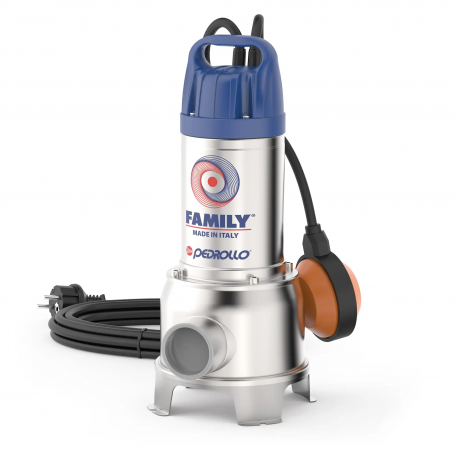

Pedrollo family 0.70hp vortex submersible electric pump | 230v - 50hz | cable 10 meters
- Model: FAMILY (VORTEX stainless steel submersible electric pump for dirty water)
- Use: Draining and lifting sewage with solids up to Ø 30 mm, ideal for domestic use in automatic fixed installations.
- Performance: Flow rate up to 250 l/min (15 m³/h) - Head up to 10 m.
- Limits of use: Maximum immersion 5 m (with suitable cable) - Liquid temperature up to +40 °C - Minimum immersion for continuous service: 160 mm.
- Power supply / Electrical data: Single-phase 230 V - 50 Hz - P2 0.50 kW (0.70 HP) - Rated current 3.0 A - Insulation Class F - Protection IPX8.
- Materials: Pump body, base, motor jacket and VORTEX impeller in AISI 304 stainless steel - Motor shaft in AISI 431.
- Seal: STA-12R double mechanical seal (Ceramic/Graphite/NBR) with interposed oil chamber.
- Equipment: 5 m H07 RN-F cable with Schuko plug - Built-in float switch - Ø 50 mm hose holder.
- Connections/Solids passage: 1½" port - Solid body passage up to Ø 30 mm.
- Approximate dimensions: a 70 mm - b 93 mm - c 140 mm - H 333 mm - h1 68 mm - Weight 7.0 kg.
- Notes: Italian patent no. IT0001428923.
Warranty: 2 years
FREE SHIPPING
CLICK TO RETURN TO ELECTRIC PUMPS
Migliori E-commerce d'Italia per forniture industriali - la Repubblica
24 mesi di garanzia
Hai bisogno di ulteriori informazioni? Contattaci
Description
Pedrollo Vortex Model Family submersible electric pump for dirty water in stainless steel, solids passage up to 30 mm.
Distinguished from other electric pumps by its ease of use and reliability in fixed installations with automatic operation.
Single-phase voltage 230 V.
Power 0.50 kW - 0.70 HP.
Technical Characteristics:
- Single-phase voltage 230 V.
- Power 0.50 KW - 0.70 HP.
- Depth below water level up to 5 m (with power cord of appropriate length)
- Flow rate up to 250 l/min (15 m³/h)
- Head up to 10 m
- Liquid temperature up to +40 °C (104 °F)
- Solids passage up to Ø 30 mm
- Maximum operating depth up to 5 m (with power cord of appropriate length)
- Minimum immersion for continuous service 160 mm
- 2-pole motor
- IP 68 degree of protection
Construction characteristics:
- Vortex submersible electric pump
- Pump body Stainless steel AISI 304, fitted with ISO 228/1 threaded port
- Base Stainless steel AISI 304
- Impeller VORTEX type stainless steel AISI 304
- Motor jacket Stainless steel AISI 304
- Motor shaft Stainless steel AISI 431
- Double shaft seal
- STA-12R Seal Shaft Ø 12 mm Ceramic / Graphite / NBR
- Seal ring Ø 12 x Ø 19 x H 5 mm
- Capacitor
- Electric motor Single-phase 230 V - 50 Hz with thermal motor protector built into the winding
- Insulation: class F - Protection: IP X8
- Power cable type "H07 RN-F" with Schuko plug, standard length 5 meters
- Float switch
- Tilting device for the float cable Patent No. IT0001428923
- Hose connector (included in delivery) Ø 50 mm
- DN 1″1/2 port
48SDFY22A1
- BRAND
- PEDROLLO
- ALIMENTATION (V.)
- 230
- POWER (Kw)
- 0.5
