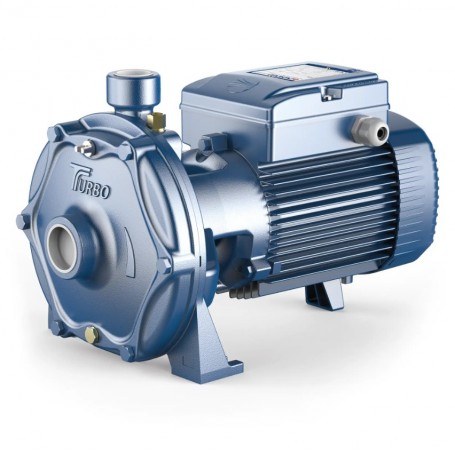

Model: Pedrollo TURBO Series (Centrifugal twin-impeller electric pumps for clean water)
Use: Pumping clean water for domestic, civil and industrial use - Ideal for pressurization systems with autoclaves and tanks, mains pressure boosting and irrigation.
Performance: Flow rate up to 200 l/min (12 m³/h) - Head up to 68 m.
Operating limits: Suction height up to 7 m - Liquid temperature from -10 °C to +90 °C - Ambient temperature up to +40 °C - Maximum pressure in the pump body 10 bar.
Power supply / Absorption: Single-phase 230 V - 7.0 A (TURBOm 4B, 6C) - 10.0 A (TURBOm 4A, 6B) - 12.0 A (TURBOm 6A) - Three-phase 230/400 V - 2.8÷8.7 A according to model.
Power (P2): 1.1 kW (1.5 HP) to 2.2 kW (3 HP) depending on version.
Materials: Cast iron pump body and presser - AISI 304 stainless steel impellers - AISI 431 shaft - Graphite/ceramic/NBR mechanical seal - NBR gaskets.
Technology: High-efficiency double-impeller electric pumps with optimized hydraulic redesign - +40 % flow rate, +9 % efficiency, -30 % noise - High-efficiency IE2 (single-phase) and IE3 (three-phase) motors - S1 continuous operation.
Features: Inverter-ready motor - IPX4 protection (optional IPX5) - Built-in thermal motor protector in single-phase models - Possibility of installation in pressure units with inverters.
Installation: To be placed in a dry, well-ventilated environment - Hydraulic connection via ISO 228/1 threaded ports - Use with clean water or liquids compatible with construction materials.

Suitability for use and performance curves according to the manufacturer's data sheet.

Warranty: 2 years

CLICK TO RETURN TO THE SURFACE ELECTRIC PUMPS

Shipping expected within 7 working days

Pedrollo turbom 6a centrifugal bigiring electropump | 2.2 kw - 3 hp | 230v 50hz

Paga in 3 rate

Model: Pedrollo TURBO Series (Centrifugal twin-impeller electric pumps for clean water)
Use: Pumping clean water for domestic, civil and industrial use - Ideal for pressurization systems with autoclaves and tanks, mains pressure boosting and irrigation.
Performance: Flow rate up to 200 l/min (12 m³/h) - Head up to 68 m.
Operating limits: Suction height up to 7 m - Liquid temperature from -10 °C to +90 °C - Ambient temperature up to +40 °C - Maximum pressure in the pump body 10 bar.
Power supply / Absorption: Single-phase 230 V - 7.0 A (TURBOm 4B, 6C) - 10.0 A (TURBOm 4A, 6B) - 12.0 A (TURBOm 6A) - Three-phase 230/400 V - 2.8÷8.7 A according to model.
Power (P2): 1.1 kW (1.5 HP) to 2.2 kW (3 HP) depending on version.
Materials: Cast iron pump body and presser - AISI 304 stainless steel impellers - AISI 431 shaft - Graphite/ceramic/NBR mechanical seal - NBR gaskets.
Technology: High-efficiency double-impeller electric pumps with optimized hydraulic redesign - +40 % flow rate, +9 % efficiency, -30 % noise - High-efficiency IE2 (single-phase) and IE3 (three-phase) motors - S1 continuous operation.
Features: Inverter-ready motor - IPX4 protection (optional IPX5) - Built-in thermal motor protector in single-phase models - Possibility of installation in pressure units with inverters.
Installation: To be placed in a dry, well-ventilated environment - Hydraulic connection via ISO 228/1 threaded ports - Use with clean water or liquids compatible with construction materials.

Suitability for use and performance curves according to the manufacturer's data sheet.

Warranty: 2 years

CLICK TO RETURN TO THE SURFACE ELECTRIC PUMPS

€475.07 (tax incl.) Iva inclusa

€791.78 -40%

Migliori E-commerce d'Italia per forniture industriali - la Repubblica

migliori ecommerce italia forniture industriali

24 mesi di garanzia

Hai bisogno di ulteriori informazioni? Contattaci

Pedrollo TURBO Series - Twin impeller centrifugal electric pumps

Performance range

Pedrollo TURBO Series centrifugal electric pumps provide high performance and reliability. Flow rate of up to 200 l/min (12 m³/h) and maximum head of 68 m, for powerful and constant thrust in clean water applications.

Uses and installations

Designed for pumping clean water, they combine efficiency, versatility and quiet operation. Ideal for:

Domestic, civil and industrial installations with continuous service requirements;
Water distribution with autoclaves and storage tanks;
Mains pressure boosting (e.g., multi-story buildings);
Irrigation systems and high head agricultural applications.

With optimized efficiency, they are the ideal solution for those who want higher performance with reduced consumption.

Electric motor

New-generation inverter-ready motor for balanced, quiet and energy-efficient operation. IE3 (three-phase) and IE2 (single-phase) efficiency, class F insulation, IPX4 protection (IPX5 on request for some executions).
