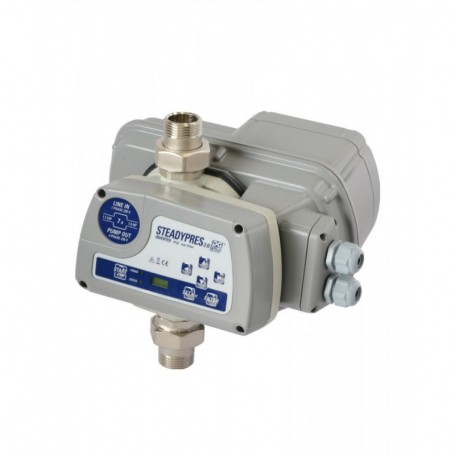

Pedrollo steadypres tt6 three phase electronic water inverter

DESCRIPTION:

Pedrollo water inverter STEADYPRES TT 6 code 50064/630

Electronic variable speed control device for pumps and pressure units.

• Water-cooled.
• Can be applied to the pipeline or pump.
• Maintains constant system pressure as water demand changes.
• Protects pump and system from malfunctions.
• Can work in parallel with other STEADYPRES up to controlling 3 pumps in cascade.
• New software for easier and more intuitive access to settings.

Three levels of regulation:

• BASIC, to set pressure and current
• ADVANCED, to adapt the inverter to particular plant situations
• INSPECTION for detecting No. of shutdowns/ignitions, No. of hours of operation, and recording the last operating error

New Integrated Kit: pressure sensor integrated on the resined board

Removable check valve and flow sensor for safe sealing and stop flow rate of only 2 l/min

PROTECTIONS:

• Dry running with automatic reset
• Overcurrents
• Overtemperature
• Pump lockout for non-use
• Output phase control (three-phase model)
