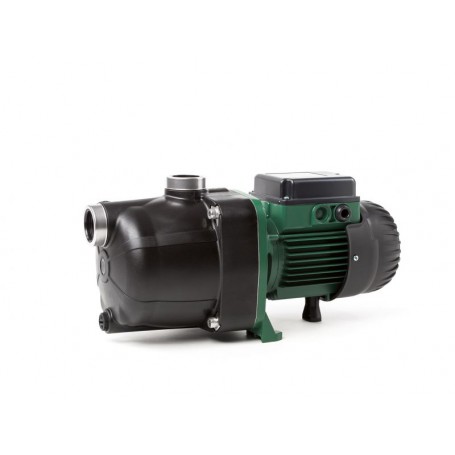

SELF-PRIMING CENTRIFUGAL ELECTRIC PUMP DAB JETCOM 102 M HP.1 V230

Description:

TECHNICAL DATA.

• Operating range: up to 0.6 to 5.4 m3 /h with head up to 54 meters.
• Pumped liquid: clean, free of solids or abrasive substances, non-viscous, non-aggressive, non-crystallized and chemically neutral.
• Liquid temperature range: 0°C to +35°C for domestic use (EN 60335-2-41).
• Maximum ambient temperature: +40°C
• Maximum operating pressure: 6 bar (600 kPa)
• Maximum suction depth: 8 meters.
• Installation: fixed or portable in a horizontal position.
• Special executions on request: other voltages and/or frequencies.
• Degree of protection of motor: IP 44 Degree of protection at terminal box: IP 55
• Insulation class: F
• Standard voltage: single-phase 220/240 V / 50 Hz three-phase 230/400 V / 50 Hz

APPLICATIONS

Self-priming centrifugal pump with excellent suction capabilities even in the presence of air bubbles. Suitable for use with water with small sandy impurities. Particularly used for water supply in domestic systems. Suitable for small agriculture and gardening, limited industrial services and where self-priming function is needed.

PUMP CONSTRUCTION FEATURES

Technopolymer pump body and die-cast aluminum motor support.

Impeller, diffuser, venturi tube and sand guard made of technopolymer.

Stainless steel shim rings.

Carbon/ceramic mechanical seal.

MOTOR CONSTRUCTION CHARACTERISTICS.

Asynchronous type, enclosed, externally ventilated cooled. Rotor mounted on greased-for-life, oversized ball bearings to ensure quiet operation and durability. Built-in thermal-amperometric protection and permanently inserted capacitor in the single-phase version. For protection of the three-phase motor, the use of a remote motor protector in accordance with current standards is recommended. Construction according to IEC 2-3 / IEC 61-69 (EN 60335-2-41) standards.
