VXC series pumps, constructed of cast iron of considerable thickness, exceptional strength and abrasion resistance, are equipped with VORTEX-type impeller.
They are recommended for draining soiled water with suspended solids, sewage, waste water and mixed with sludge.
Click on the link to return to the Pedrollo VXC

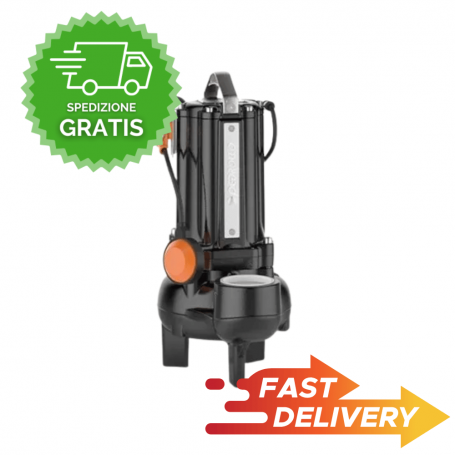

Electric pump pedrollo vxcm15/45 my09 22-24/5 10m
VXC series pumps, constructed of cast iron of considerable thickness, exceptional strength and abrasion resistance, are equipped with VORTEX-type impeller.
They are recommended for draining soiled water with suspended solids, sewage, waste water and mixed with sludge.
Click on the link to return to the Pedrollo VXC
Description
They are recommended for draining soiled water with suspended solids, sewage, waste water and mixed with sludge.
Features
Liquid type: sewage water
Uses: domestic, civil
Uses: drainage, handling slightly dirty water, draining
Type: submersible
Family: submersibles
Performance range:
- Flow rate up to 650 l/min (39.0 m³/h)
- Head up to 14 m
Operating limits:
- Liquid temperature up to +40°C
- Depth of use below water level up to 10 m
- Passage of suspended solids:
- up to Ø 40 mm for VXC/35-N
- up to Ø 50 mm for VXC/45-N
- For continuous service minimum immersion:
- up to 305 mm for VXC/35-N
- up to 320 mm for VXC/45-N
- BRAND
- PEDROLLO
- ALIMENTATION (V.)
- 230
- POWER (Kw)
- 0.75
ELECTRIC PUMP PEDROLLO VX 10/50 V380-415/50Hz - (48SGV91D0A)
MALE HOSE CONNECTOR 2'' STAINLESS STEEL 316 - (344200316)
MATERIAL: AISI 316 / 1.4401 / 1.4408THREAD: EN 10226-1 (formerly ISO 7/1) RATING: 150 PSI PN10
BACK TO STAINLESS FITTINGS
ELECTRIC PUMP PEDROLLO ZXm1A/40-MY07 220-240/50 - (48SDZE4AA1)
PEDROLLO VORTEX VORTEX RXm 3/20 V.230 ELECTRIC PUMP - SUBMERGIBLE PUMP FOR HARD WATER - (48TXV13A1)
VORTEX RXM 3/20 pumps are suitable for dirty water drainage. The constructive solutions ensure safe operation, even in continuous use, thanks to the total cooling of the motor. They are recommended for domestic use, for the evacuation of dirty water in which suspended solids are present.
_
Click on the link to return to the Pedrollo RX-Vortex Series
