MXV 50-2013: in-line vertical multistage electric pump for water pressurization and distribution 15.0 kW / V.400.
- IE3, IP55, prepared for inverter
- Stainless steel, continuous service
Calpeda mxv 50-2013 kw 15 v.400 electric pump
MXV 50-2013: in-line vertical multistage electric pump for water pressurization and distribution 15.0 kW / V.400.
- IE3, IP55, prepared for inverter
- Stainless steel, continuous service

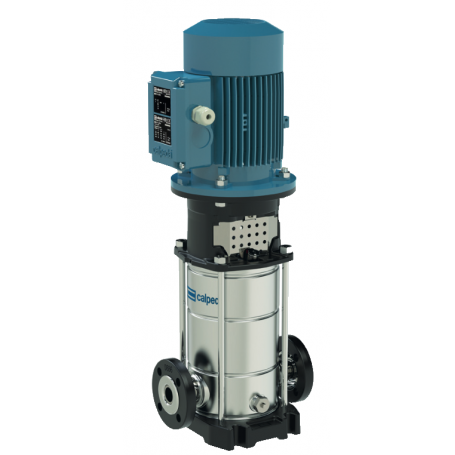

CALPEDA MXV 50-2013 ELECTRIC PUMP kW 15 V.400
The MXV 50-2013 is a Calpeda MXV series vertical in-line multistage electric pump designed for maximum reliability in civil and industrial applications.
Main Features.
- Rated power: 15 kW
- Power supply: V.400
- 50 Hz asynchronous motor, prepared for inverter
- IE3 for three-phase motors ? 0.75 kW; insulation F; protection IP55
- Coaxial suction and delivery ports (in-line)
Applications
- Water supply and pressure boosting
- High-pressure washing plants
- Irrigation, agriculture and sports facilities
Operating limits
- Liquid temperature: -15 °C to +110 °C
- Ambient temperature: up to 40 °C (104 °F)
- Maximum pump body pressure: up to 25 bar (16 bar with oval flanges)
- Continuous service
Materials and construction
- Vertical in-line multistage pump, stainless steel wetted parts
- Corrosion-resistant guide bushings lubricated by the pumped liquid
- Mechanical seal removable without disassembling the motor (selected sizes)
Version with on-board inverter (I-MAT) for pressure/flow/temperature control and energy saving also available upon request.
- BRAND
- CALPEDA
- ALIMENTATION (V.)
- 400
- POWER (Kw)
- 15
- PUMP TYPE
- PUMP+MOTOR
