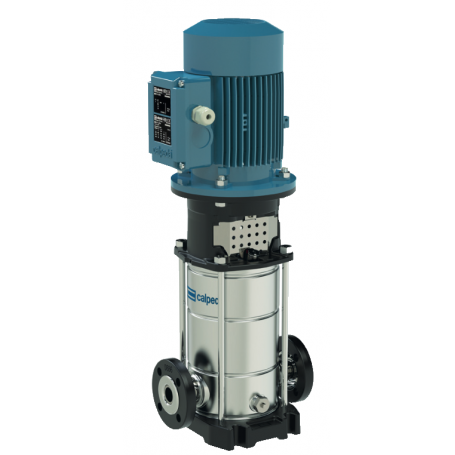

CALPEDA ELECTROPOM MXV 25-308 kW 1.5 V.400
zoom_out_map
chevron_left chevron_right

MXV 25-308: vertical in-line multistage electric pump for pressurization and water distribution 1.5 kW / V.400.

  • IE3, IP55, prepared for inverter
  • Stainless steel, continuous service
Shipping expected within 7 working days


Calpeda electropom mxv 25-308 kw 1.5 v.400

MXV 25-308: vertical in-line multistage electric pump for pressurization and water distribution 1.5 kW / V.400.

  • IE3, IP55, prepared for inverter
  • Stainless steel, continuous service
€1,228.64 (tax incl.) Iva inclusa
€1,806.82 -32%
o paga a rate senza interessi Cofidis PagoDIL informazioni
new_releases Expected shipping in 7 working days
migliori ecommerce italia forniture industriali
Migliori E-commerce d'Italia per forniture industriali - la Repubblica
migliori ecommerce italia forniture industriali
24 mesi di garanzia
Icona supporto telefonico
Hai bisogno di ulteriori informazioni? Contattaci
Paga in comode rate senza costi né interessi
€ /mese
Maggiori informazioni informazioni

CALPEDA MXV 25-308 kW 1.5 V.400 ELECTRIC PUMP.

The MXV 25-308 is a vertical in-line multistage electric pump of the Calpeda MXV series, designed for maximum reliability in civil and industrial applications.

Main features.

  • Rated power: 1.5 kW
  • Power supply: V.400
  • 50 Hz asynchronous motor, prepared for inverter
  • IE3 for three-phase motors ? 0.75 kW; insulation F; protection IP55
  • Coaxial suction and delivery ports (in-line)

Applications

  • Water supply and pressure boosting
  • High-pressure washing plants
  • Irrigation, agriculture and sports facilities

Operating limits

  • Liquid temperature: -15 °C to +110 °C
  • Ambient temperature: up to 40 °C (104 °F)
  • Maximum pump body pressure: up to 25 bar (16 bar with oval flanges)
  • Continuous service

Materials and construction

  • Vertical in-line multistage pump, stainless steel wetted parts
  • Corrosion-resistant guide bushings lubricated by the pumped liquid
  • Removable mechanical seal without disassembling the motor (selected sizes)

Version with on-board inverter (I-MAT) for pressure/flow/temperature control and energy saving also available upon request.

52A08211000
BRAND
CALPEDA
ALIMENTATION (V.)
400
POWER (Kw)
1.5
PUMP TYPE
PUMP+MOTOR
