Oval body gate valve with rubberized wedge, designed for reliable sectioning of water mains and pipelines for potable or raw water. The long gauge design ensures strength, reliability and easy installation even on existing networks.
- Field of use: sectioning of pipelines conveying potable or raw water up to PN16, with fluid temperature up to +50 °C.
- Long-gauge oval body: ISO 5752 / EN 558 - 15 series (DN + 200 mm), ideal for replacements and installations on existing networks.
- Rugged construction: body and wedge made of spheroidal cast iron EN GJS 500-7 with RAL 5050 blue epoxy coating (thickness ≥ 250 microns).
- Hermetically sealed: fully EPDM-coated wedge according to EN 681-1 for reliable sealing on both sides.
- Versatile installation: vertical or horizontal mounting, suitable for chamber or underground installation.
- Standard equipment: supplied with handwheel for immediate manual operation.
- Size range: available from DN 40 to DN 300 with PN10 / PN16 flanges.
- Tests and certifications: hydraulic test according to EN 12266 and EN 1074 - suitable for contact with potable water according to D.M. 174/2004.
Discover the whole range of spheroidal cast iron rubberized wedge gate valves available in the catalog.

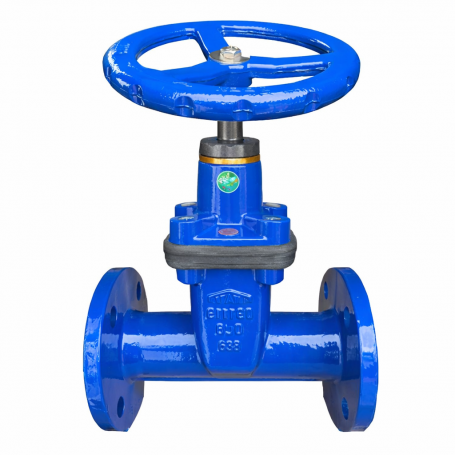

Oval body gate valve dn150 pn10-16 rubberized wedge with hand wheel
Oval body gate valve with rubberized wedge, designed for reliable sectioning of water mains and pipelines for potable or raw water. The long gauge design ensures strength, reliability and easy installation even on existing networks.
- Field of use: sectioning of pipelines conveying potable or raw water up to PN16, with fluid temperature up to +50 °C.
- Long-gauge oval body: ISO 5752 / EN 558 - 15 series (DN + 200 mm), ideal for replacements and installations on existing networks.
- Rugged construction: body and wedge made of spheroidal cast iron EN GJS 500-7 with RAL 5050 blue epoxy coating (thickness ≥ 250 microns).
- Hermetically sealed: fully EPDM-coated wedge according to EN 681-1 for reliable sealing on both sides.
- Versatile installation: vertical or horizontal mounting, suitable for chamber or underground installation.
- Standard equipment: supplied with handwheel for immediate manual operation.
- Size range: available from DN 40 to DN 300 with PN10 / PN16 flanges.
- Tests and certifications: hydraulic test according to EN 12266 and EN 1074 - suitable for contact with potable water according to D.M. 174/2004.
Discover the whole range of spheroidal cast iron rubberized wedge gate valves available in the catalog.
- CONNECTION
- FLANGE
- MATERIAL
- CAST IRON
- DIAMETER (mm)
- 150
- PN
- 10/16
