Flat-body gate valve with rubberized wedge, ideal for sectioning water mains and pipelines for potable or raw water. Designed to ensure reliability, perfect tightness and long life even in heavy-duty installations.
- Field of use: sectioning of pipelines conveying potable or raw water up to PN16, with fluid temperature up to +50 °C.
- Rugged construction: body and wedge made of spheroidal cast iron EN GJS 500-7 with RAL 5050 blue epoxy coating (thickness ≥ 250 microns).
- Reliable sealing: fully EPDM-coated wedge according to EN 681-1 for tight sealing on both sides.
- Versatile installation: vertical or horizontal mounting, suitable for chamber or underground installation.
- Narrowgauge: ISO 5752 / EN 558 - 14 series, ideal for limited spaces.
- Standard equipment: supplied with handwheel for immediate manual operation.
- Size range: available from DN 40 to DN 300 with PN10 / PN16 flanges.
- Tests and certifications: hydraulic test according to EN 12266 and EN 1074 - suitable for contact with potable water according to D.M. 174/2004.
Discover the whole range of spheroidal cast iron rubberized wedge body flat gate valves available in the catalog.

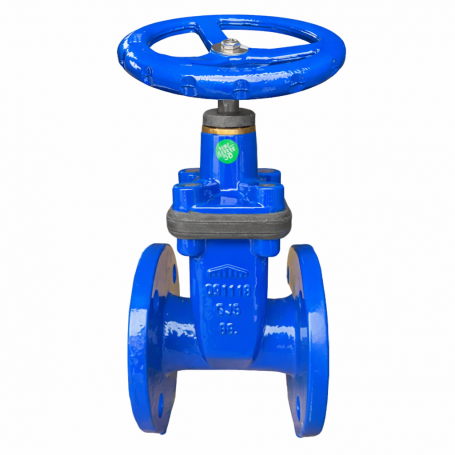

Flat body gate valve dn300 pn10 rubberized wedge with hand wheel
Flat-body gate valve with rubberized wedge, ideal for sectioning water mains and pipelines for potable or raw water. Designed to ensure reliability, perfect tightness and long life even in heavy-duty installations.
- Field of use: sectioning of pipelines conveying potable or raw water up to PN16, with fluid temperature up to +50 °C.
- Rugged construction: body and wedge made of spheroidal cast iron EN GJS 500-7 with RAL 5050 blue epoxy coating (thickness ≥ 250 microns).
- Reliable sealing: fully EPDM-coated wedge according to EN 681-1 for tight sealing on both sides.
- Versatile installation: vertical or horizontal mounting, suitable for chamber or underground installation.
- Narrowgauge: ISO 5752 / EN 558 - 14 series, ideal for limited spaces.
- Standard equipment: supplied with handwheel for immediate manual operation.
- Size range: available from DN 40 to DN 300 with PN10 / PN16 flanges.
- Tests and certifications: hydraulic test according to EN 12266 and EN 1074 - suitable for contact with potable water according to D.M. 174/2004.
Discover the whole range of spheroidal cast iron rubberized wedge body flat gate valves available in the catalog.
- CONNECTION
- FLANGE
- MATERIAL
- CAST IRON
- PN
- 10
- DN
