Shipping expected within 7 working days

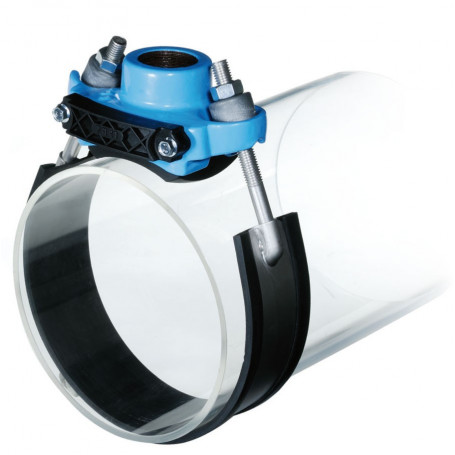

RACI BODY COLLAR 370/I DN3/4'' + INTAKE
Accettiamo i seguenti metodi di pagamento
- Universal body for making utility outlets on metal and asbestos cement pipes.
- A single body with threaded outlet for different pipe diameters.
- Body fully coated with high quality anti-corrosion thermosetting epoxy layer and minimum thickness of 250 microns. Checks for absence of porosity, impact resistance (3kV test) and quality of protective film in accordance with DIN 30677-2 and DIN 3476.
- Underload gripping system integrated in the body with double-seal gasket package and free passage for the use of drill pipes with cup tips.
- Backing gasket on the pipe with double O-ring profile for consistently reliable sealing ( supplied with the bracket in four possible sizes and two different materials depending on pipe diameter and material).
- Outlet with parallel internal thread for tight couplings according to EN 10226
- Nut tightening torque: 80Nm
CICN720C
- BRAND
- RACI
- INCHES
- 3/4
