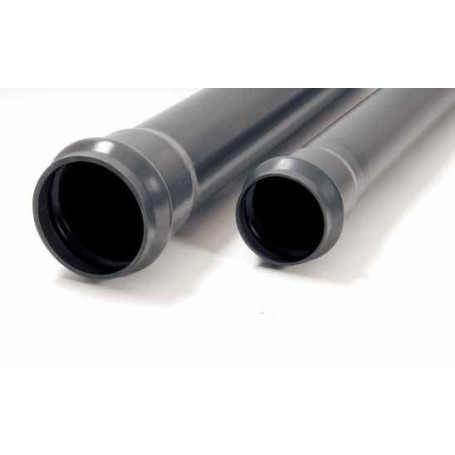

PVC PIPE EN1452 IIP PN 10 BAR 6MT D.63

PLASTIC MATERIAL PIPING SYSTEMS FOR WATER ADDUCTION AND FOR UNDERGROUND AND ABOVE-GROUND SEWERS AND DRAINS UNDER PRESSURE

REFERENCE STANDARD: UNI EN ISO 1452

Raw material: PVC compound in accordance with UNI EN ISO 1452-1

Non-toxicity: Pipes in accordance with the hygienic and sanitary requirements of DM N.174 06/04/04

Designation: PVC-U 250 according to UNI EN ISO1452-1

MRS: 25 MPa

Color: Gray RAL 7011

Lengths and formats: 6m total bars

JOINTING SYSTEMS:

• g- by means of socket and elastomeric gasket (with or without reinforcement) in accordance with UNI EN 681-1
• t- by means of socket and elastomeric gasket pre-inserted hot integrated with PP reinforcement conforming to UNI EN 681-1
• h- by means of socket and hot pre-inserted elastomeric gasket integrated with steel reinforcement conforming to UNI EN 681-1
• i- by means of bonded socket
