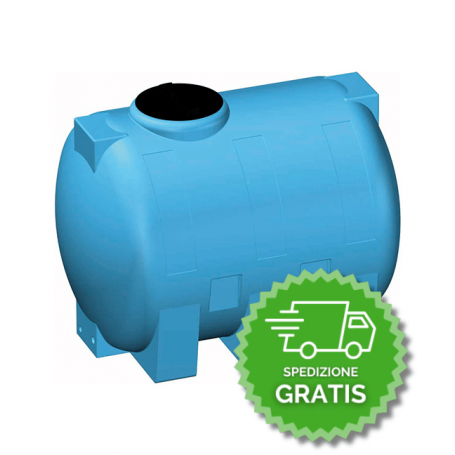

Polyethylene Tank 500 Liters - Horizontal (Code C500)

Monoblock outdoor tank made of linear polyethylene (LLDPE) with horizontal development, manufactured by rotational molding. Ideal for storage of drinking water, storm water and other compatible food liquids. Thanks to its seamless construction, it ensures a perfect seal, high mechanical strength and long service life even in outdoor environments. Its compact geometry and light weight make it easy to transport, install and maintain.

Why choose it

• Seamless monoblock: maximum strength and no leakage points.
• Non-toxic material suitable for food contact: complies with current European regulations.
• Wide operating temperature range: from -20 °C to +80 °C.
• Dedicated outdoor use: non-burying, ideal for technical areas and above-ground installations.
• Smooth surfaces: more hygienic and easy to clean.
• Female threaded connections for loading, unloading and total emptying.

Main technical specifications.

Fields of use.

• Potable water storage in civil and industrial areas.
• Collection and recovery of rainwater for irrigation or technical uses.
• Storage of food liquids compatible with polyethylene.

Equipment and arrangements

• Screw-ininspection cap Ø 21 cm with integrated vent.
• Female threaded glands for loading, unloading and emptying.
• Possibility of making additional holes in prepared planes.

Installation instructions.

1. Install on flat, load-bearing surface sized to full-load weight.
2. Avoid direct exposure to heat sources and contact with aggressive substances.
3. Connect with flexible piping to avoid structural stresses.
4. Ensure adequate ventilation where suction pumps are present.
5. Installation above ground only.

Maintenance and cleaning.

Before initial use, wash internally with water and mild detergent, then rinse thoroughly. Clean periodically to maintain optimal hygienic conditions.

Regulatory compliance for food use.

• Reg. (EC) 1935/2004 - Materials in contact with food.
• Reg. (EU) 10/2011 as amended - Plastic materials in contact with food.
• DM 21/03/1973 - Hygienic regulation of packaging and containers.
• Reg. (EC) 2023/2006 - Good manufacturing practices.

Warranty

2-year warranty on manufacturing defects and 25 years against through corrosion, in compliance with installation and maintenance instructions.

Scope of supply.

• LLDPE tank 500 L - Horizontal (C500)
• Cap Ø 21 cm with vent (CS200)
• Female threaded connections 3/4" - 1" - 3/4"
• Manufacturer's technical/use manual

Note: Always check the compatibility of the liquid with polyethylene and the installation conditions provided by the manufacturer.
