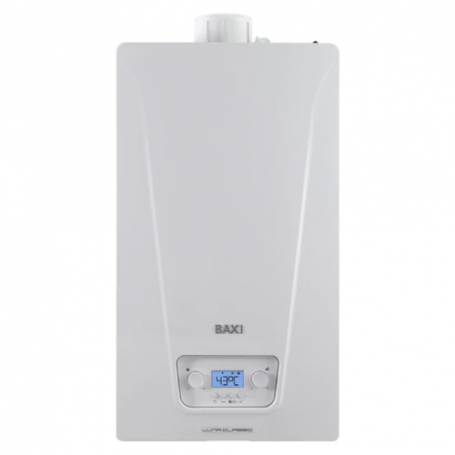

Baxi luna classic e 24kw condensing boiler - lpg/methane

Description:

The heart of the Baxi Luna Classic is the new electronic platform:

the revolutionary new system replaces the functions of previous Luna historical models while greatly improving product quality to a new level.

In fact, it was designed with special attention in meeting the needs of the end consumer. Customization and optimization of the system are possible without compromising ease of use.

Perfect water temperature thanks to its 2 new functions

You can control the management of domestic hot water that can be enhanced and improved by the activation of two dedicated functions:

• Relax function

It is a preheating function that keeps the domestic water at the desired temperature for a

preset time period, or for 30 minutes after selecting the chosen temperature.

• Boost function

Activates the boiler at maximum power for faster hot water delivery.

Instant domestic hot water

Baxi Luna Classic 24 model: DHW production 13.8 l/min

Baxi Luna Classic 28 model: DHW production 16.1 l/min

Great Comfort , High Energy Savings

- Thanks to the MODULATING SYSTEM, the new Baxi Luna Classic combines the boiler's thermal output with the building's energy demand, optimizing the comfort level. The boiler cycle is minimized, resulting in less stress on the installed components, reduced noise level, higher reliability and simplified maintenance;

- Thanks to the New Stainless Steel Heat Exchanger, equipped with sections with large water passages you will have higher seasonal thermal efficiency. The Luna Classic boiler is therefore much more reliable and easier to maintain;

- Thanks to the New Hydraulic Unit, this boiler guarantees maximum levels of performance and durability over time;

- Thanks to its Optimal Insulation, the condensing boiler works with silent operation; and

Renewed user interface with

Backlit menu with icons;

Easy settings to adjust heating temperature and domestic hot water via two dedicated knobs;

4 buttons with dedicated functions: menu, confirm, back and reset.

Easy to install.

Innovative packaging:

flexible transport (both horizontal and vertical);

less space required for unpacking;

installation instructions/schedules at the top of the packaging;

protection from dust and dirt by pre-cut polystyrene inserts;

less installation time (boiler is already positioned vertically).

Pipe connections from below;

Drain kit for hassle-free replacement.

Combining the boiler with the Baxi Mago A+ kit increases its energy efficiency by raising it to class A+.

Technical characteristics of the boiler Baxi Luna Classic

• Brand: Baxi
• Codes: A7795901 / A7795899
• Product type: Residential condensing boiler
• Powers: 24 - 28 kW
• Operation with mixture composed of up to 20% hydrogen
• New single-pass stainless steel heat exchanger with sections with large water passages for higher seasonal thermal efficiency
• Seasonal energy efficiency at 94% due to advanced applied technology
• Revamped interface with backlit display
• Easy replacement of conventional boilers thanks to central flue gas discharge
• Modulation range 1:5 greater efficiency and quietness
• Ø80 split exhaust as standard
• Connection to Ø50 mm rigid and flexible flue pipe:
• solutions for chimney rehabilitation
• total length (exhaust+suction) 40 meters
• Connection to pressurized collective flues
• Boilers running on natural gas that can be converted to LPG and propane air by means of special adjustment (conversion kit not required)
• Compact dimensions: 700x395x285 mm
• Class A+ for Luna Classic 24/28 models with Baxi Mago and external probe (as accessories)
• New hydraulic unit that guarantees maximum performance levels and durability over time
• Optimal insulation for quiet operation
