Type Z6 kinetic Asameters® are instantaneous flow meters for large flow rates of liquids. They consist of a throttling device with direct-reading Asameter® placed in the branch, on which the total flow of the main pipeline is read. Calibrated diaphragms, they are suitable for mounting on pipes 2" and larger.

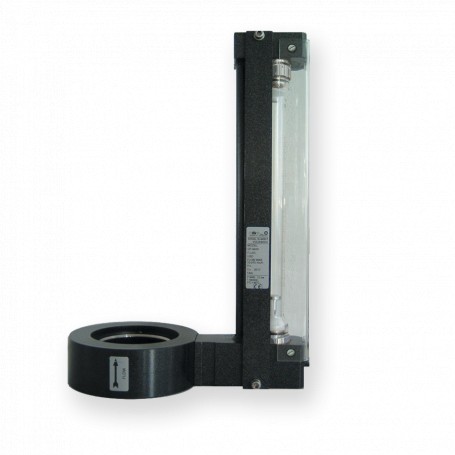

Asameter kinetic dn 65 pn10/16 flow rate 20-100m³/h
Type Z6 kinetic Asameters® are instantaneous flow meters for large flow rates of liquids. They consist of a throttling device with direct-reading Asameter® placed in the branch, on which the total flow of the main pipeline is read. Calibrated diaphragms, they are suitable for mounting on pipes 2" and larger.
TECHNICAL CHARACTERISTICS Accuracy: ± 3% v.f.s. Higher accuracies can be supplied on request Repeatability: ± 0.5% of read value Scale length: nominal 250 mm (10") Graduation: direct reading Scale amplitude: max 1 - 10 Permissible temperatures: 0-90°C with Buna O-Ring 0-120°C with Viton O-Ring Operating pressure: max 16 bar, in absence of water hammer.
CONSTRUCTION MATERIALS Wetted parts: carbon steel and AISI 316L stainless steel Main and secondary measuring diaphragm: AISI 316L stainless steel Measuring tube: borosilicate glass Float: AISI 316L stainless steel Stops: PTFE bottom stop and AISI 316L top stop Gaskets: Buna O-ring standard. Viton on request.
- DIAMETER (mm)
- 65
- PN
- 10/16
